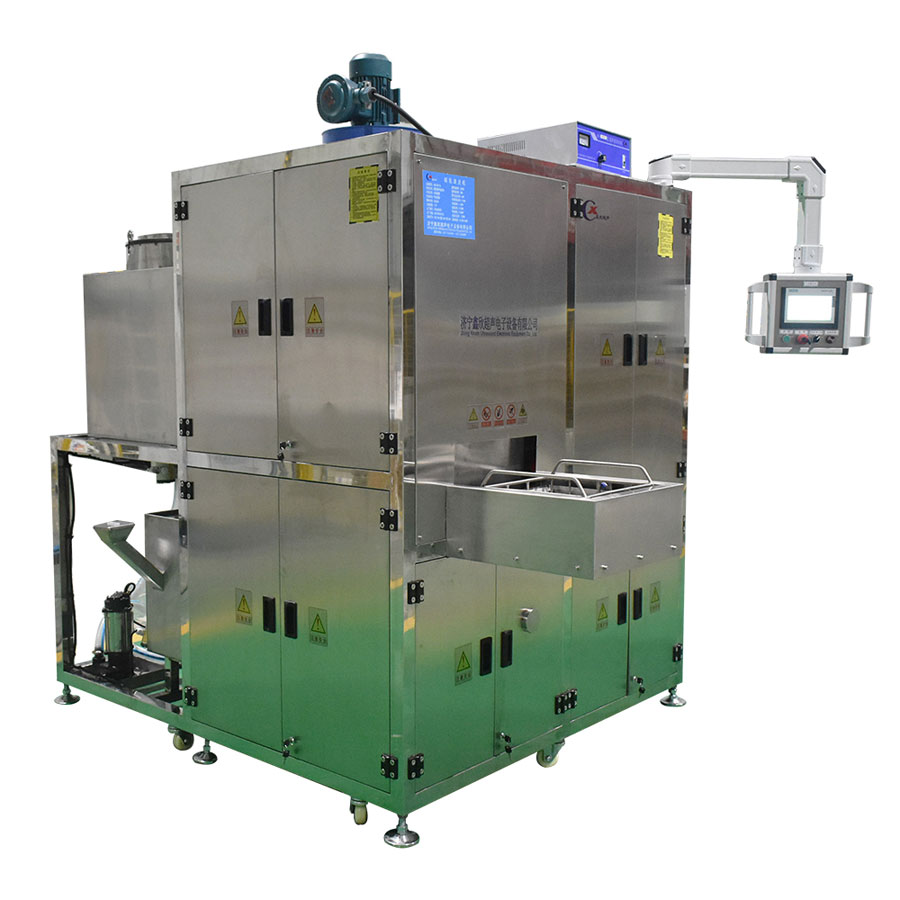

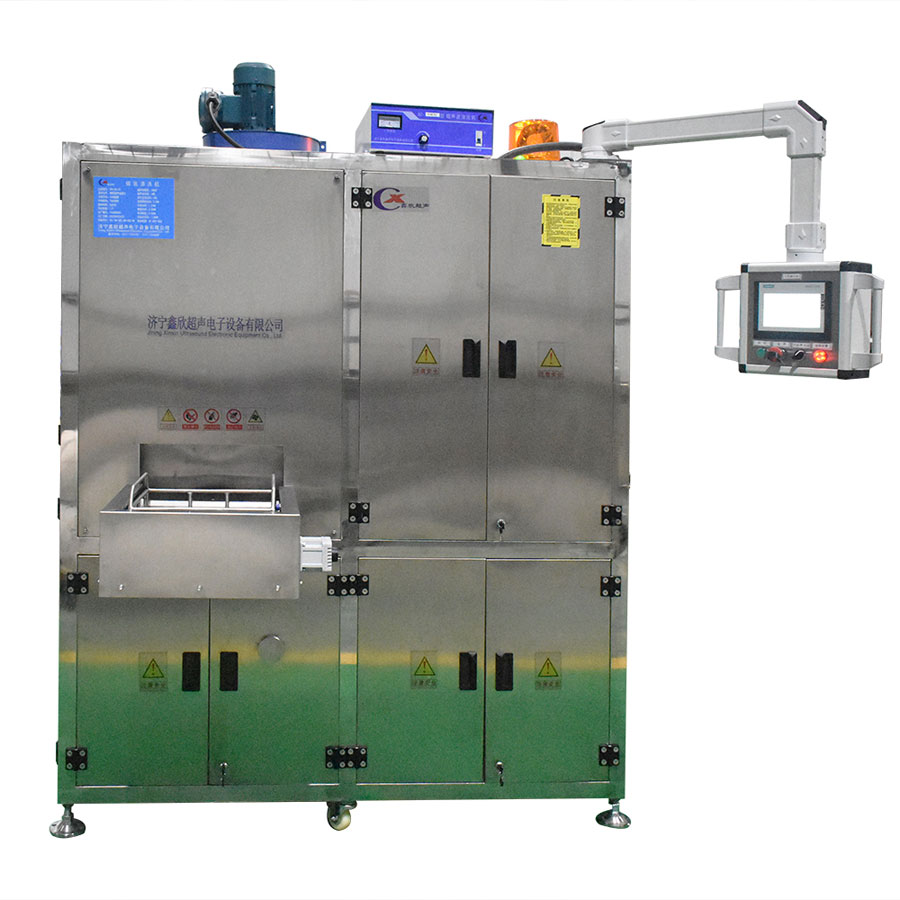

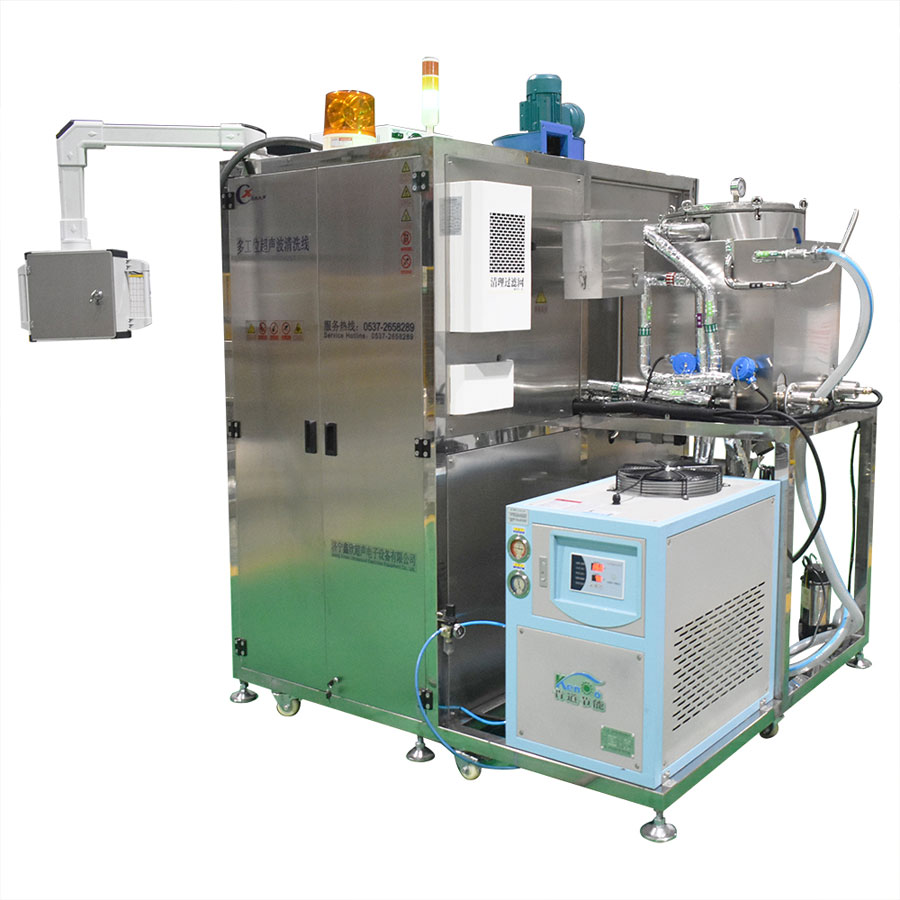

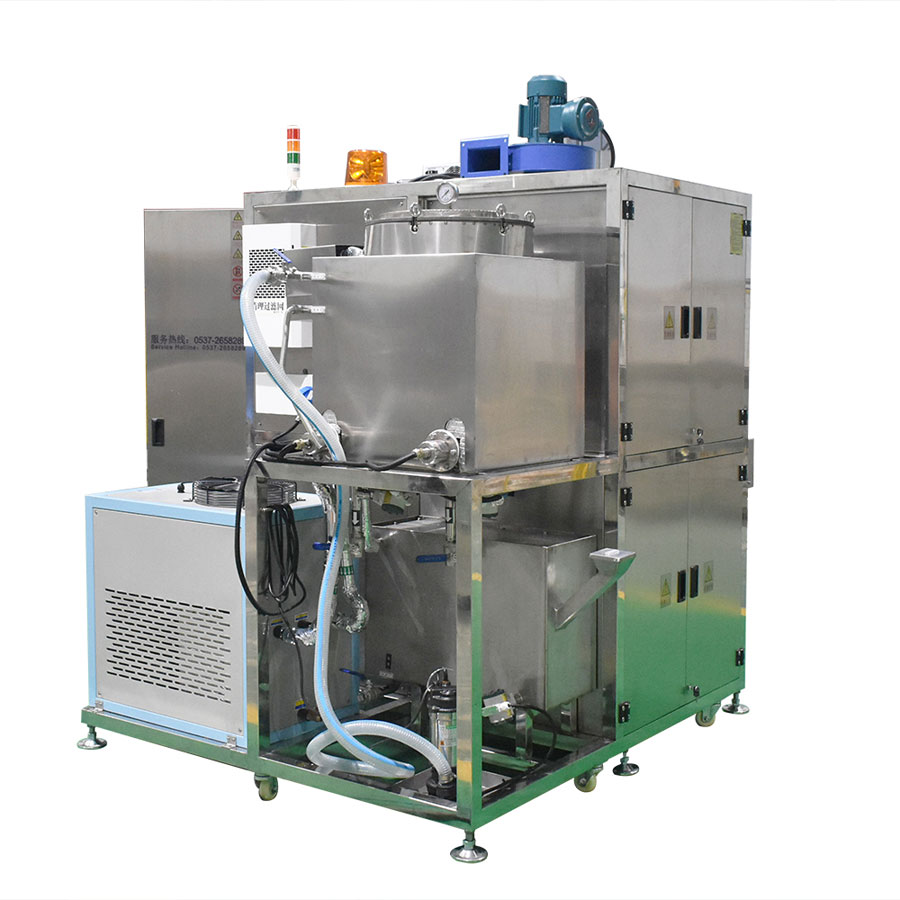

This device is a high cleanliness cleaning machine that uses hydrocarbon ultrasonic cleaning technology. The equipment consists of an ultrasonic cleaning tank, a steam bath cleaning tank, a cleaning mesh frame, a cleaning tank condensation area, a water separator, an industrial chiller, a solvent recovery machine, a pipeline system, an intelligent control system, etc

(01) Place the mesh frame containing the workpiece on the loading and unloading workbench, and the workbench automatically transports the workpiece to the lifting platform. The lifting platform drives the workpiece to descend, and the workpiece descends into the ultrasonic cleaning tank for ultrasonic cleaning.

(02) Turn on ultrasonic cleaning, which uses an ultrasonic vibration plate placed at the bottom of the tank.

After the ultrasonic cleaning is completed, the lifting platform rises above the solvent liquid and begins to steam wash the workpiece.

(04) After the steam bath is completed, the material is manually unloaded by passing through the condensation area on the lifting platform and ascending to the upper and lower material workbench.
